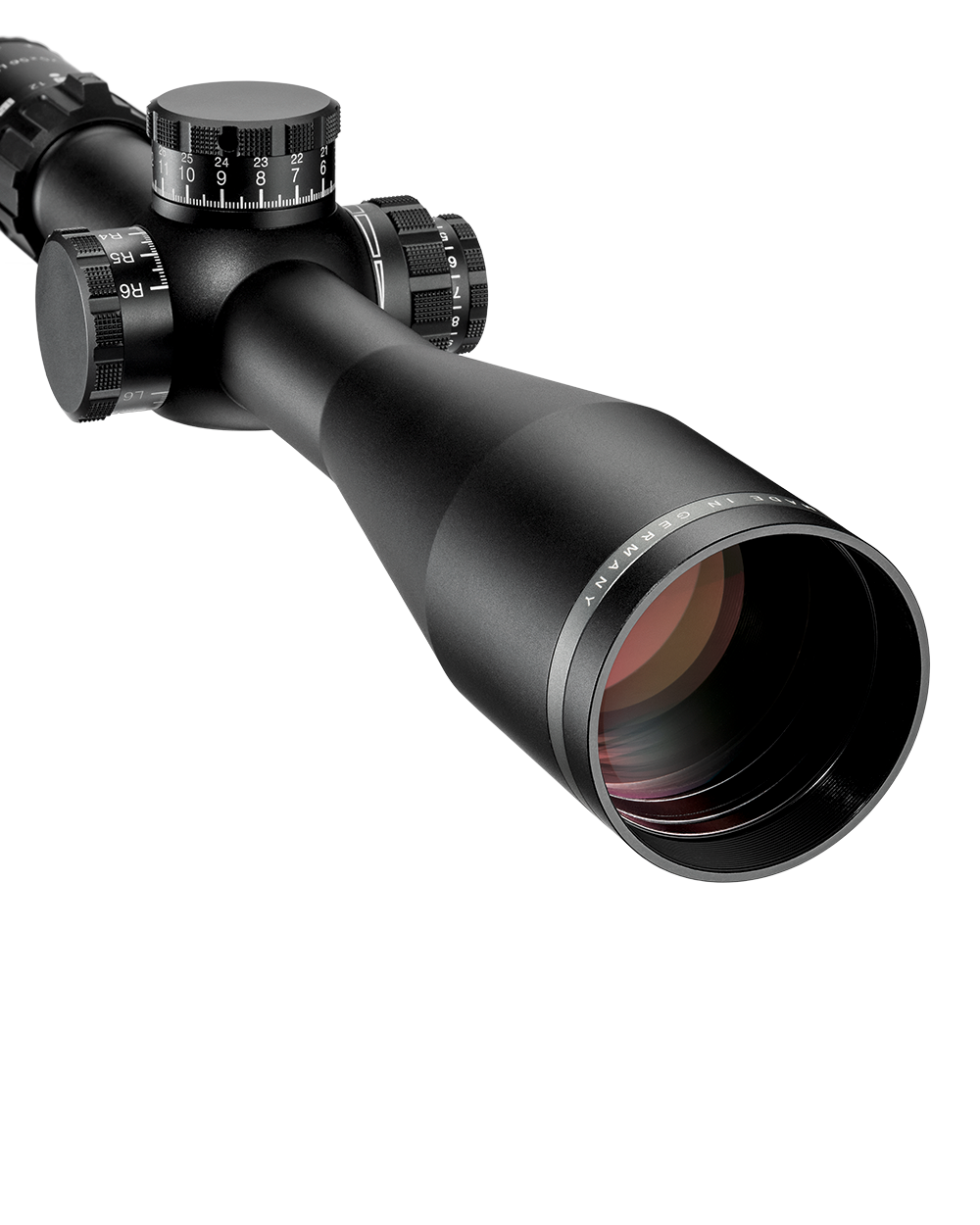

MINOX Riflescope Long Range 5-25x56
US$1,896.94
Prices excl. VAT plus shipping costs, import duties and additional taxes
Learn more
This item is not available to order online.
For high demands on price and performance

Features
- Precise mechanics and rugged construction for highest shooting stability and shot repetitions
- Highest image quality, even at the edges owing to complex optical design and use of special types of glass
- M* multi-coating on the optical elements provides excellent light transmission, contrast and color rendition
- Generous eye relief provides safety even for use with high calibers
- A brilliant image in the bright sunlight as well as an excellent contrast in the last light
- Ingeniously designed, practice-oriented long-range reticle at the first focal plane – for long distances
- Waterproof according to IPX7 and protected against internal fogging
- Comfort Service – 10-year warranty (after registration)

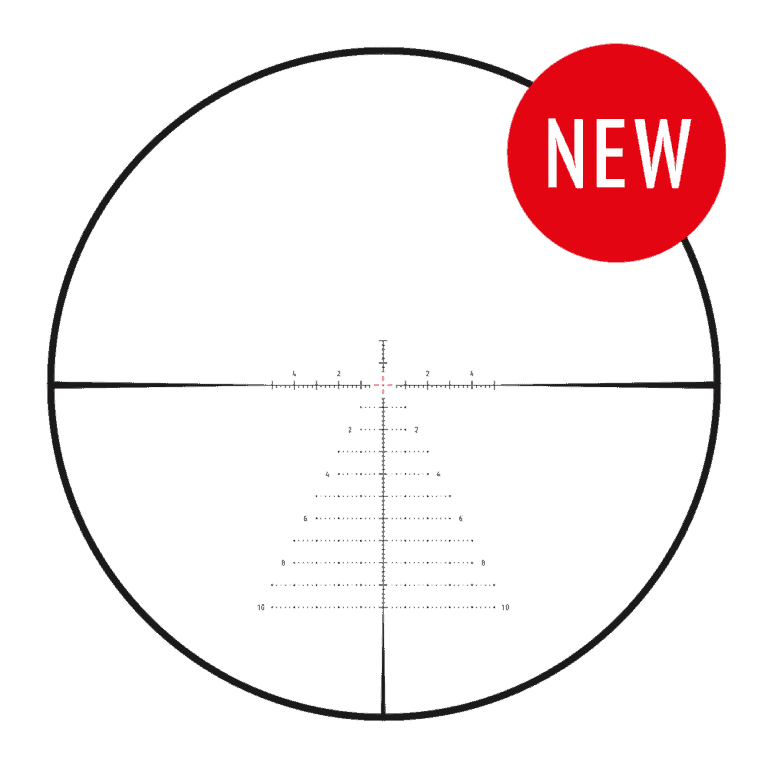

Reticle

LR
"An affordable long-range. Created for long distances.
Created to overcome difficult conditions. Created for me."

-
Technical Data
LONG-RANGE MODEL 5-25x56 LR Magnification 5-25x Objective diameter (mm) 56 Exit pupil min / max (mm) 10,6 / 2,3 Field of view min / max at 100 m (m) 7,2 / 1,6 Eye relief (mm) ~90 Diopter adjustment -4 / +2,2 Reticle adjustment (per click) 1 cm (auf 100 m) Reticle adjustment (elevation) ±280 cm Reticle adjustment (windage) ±60 cm Illuminated reticle Ja Reticle LR Focal plane 1. Power source for illuminated reticle 1x CR 2032 Parallax compensation 50 m bis ∞ Nitrogen gas purged Ja Non-fogging, waterproof according to IPX7 Ja Tube diameter (mm) 34 Length (mm) 422 Weight (g) 940 -
Included in Delivery
1x Riflescope
1x Type CR 2032 battery, 3 Volt
1x Tenebraex ocular protection cap
1x Tenebraex objective protection cap
1x Adapter ring
1x Optics cleaning cloth
1x Instruction manual
-
Dimensions
A B C D E F G H I J K L M N 1-5x24 284 89,7 - 64,4 79,6 - 45,8 46,4 15,2 63,6 15,2 18,5 30 45 2-10x50 334 95 44,6 64,4 79,6 57 45,8 46,4 15,2 63,6 15,2 18,5 30 45 3-15x56 371 124,5 43,1 73,6 79,6 62 45,8 46,4 15,2 74,3 15,2 29,2 30 45 5-25x56 422 148,8 60,5 68,1 78,2 62 45,8 67,8 29,3 94,5 25,3 35,2 34 45 -
